Our customers expect us to supply high quality, robust and reliable products. All of our products are tried and tested within our own monitoring solutions. This allows us to confidently be able to support our clients with product and application knowledge. Elcomponent – making sense of your energy.
  • Data Logger & Communications

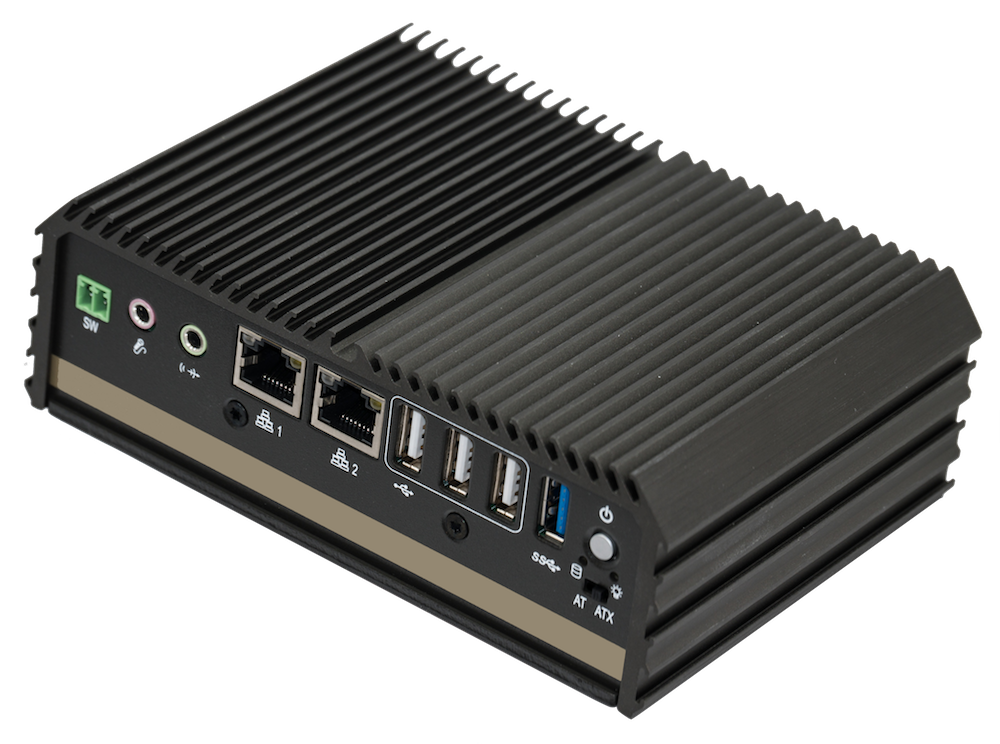

    MPC – IoT Gateway

    • High performance metering gateway
    • Simultaneous data dispatch
    • FTP, SFTP, HTTP, HTTPS etc
    • Programmable Modbus mapping
    Applications:
    • Multiprotocol meter logger
    • Simultaneous data feeds
    • Automated data quality
    • Network / device monitoring

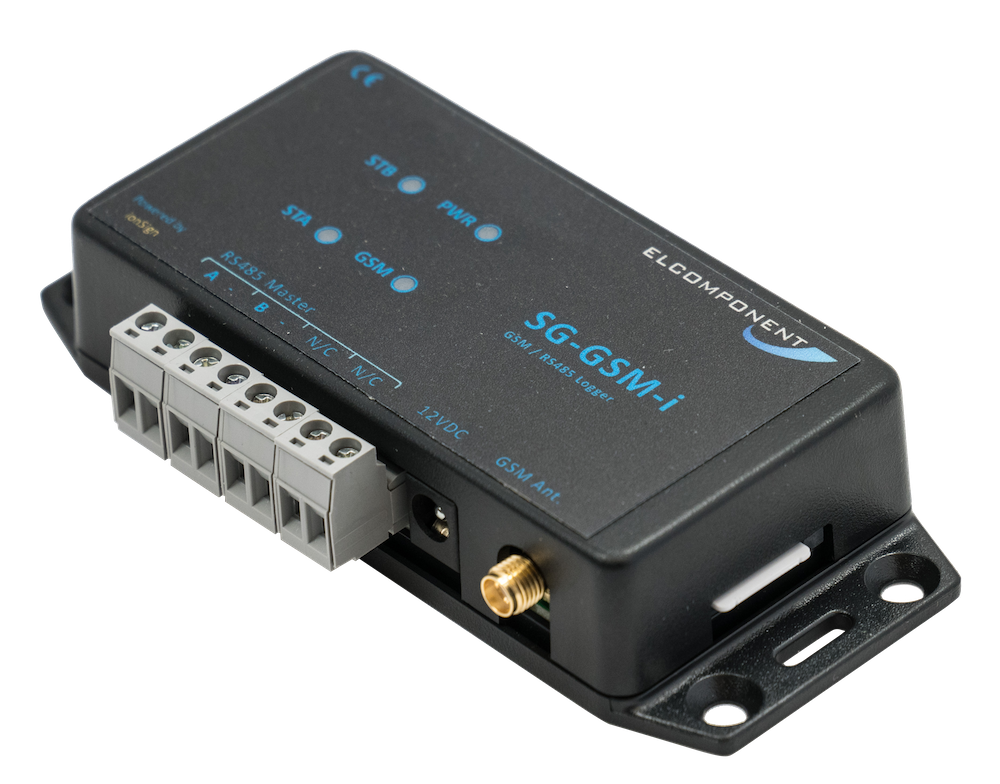

    SG-GSMi – Universal Modbus logger with GSM
    • Internal buffer 90 days
    • Built in GSM / simple configuration
    • Programmable Modbus mapping
    • Tiny footprint
    Applications
    • Multiprotocol meter logger
    • Remote locations

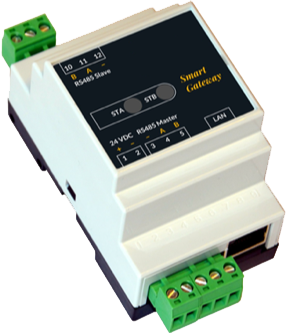

    SG-LANi – Universal Modbus logger
    • Built in IP / simple configuration
    • Programmable Modbus mapping
    • Modbus replication for BMS integration
    • Internal buffer 90 days
    Applications
    • IP based meter logging
    • Data logging and BMS integration

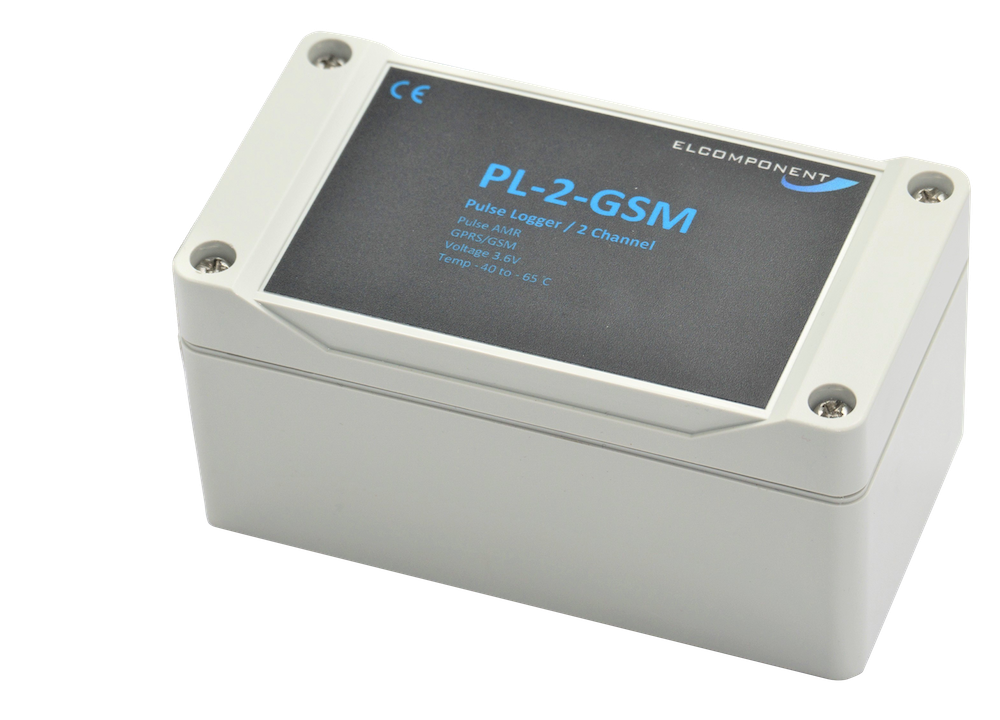

    SG-PL2-GSM
    • 2 Channel Pulse Logger
    • Battery powered
    • Built in GSM
    • Water proof IP65
    Applications
    • Remote gas or water logging
    • Pulse logging in harsh environments

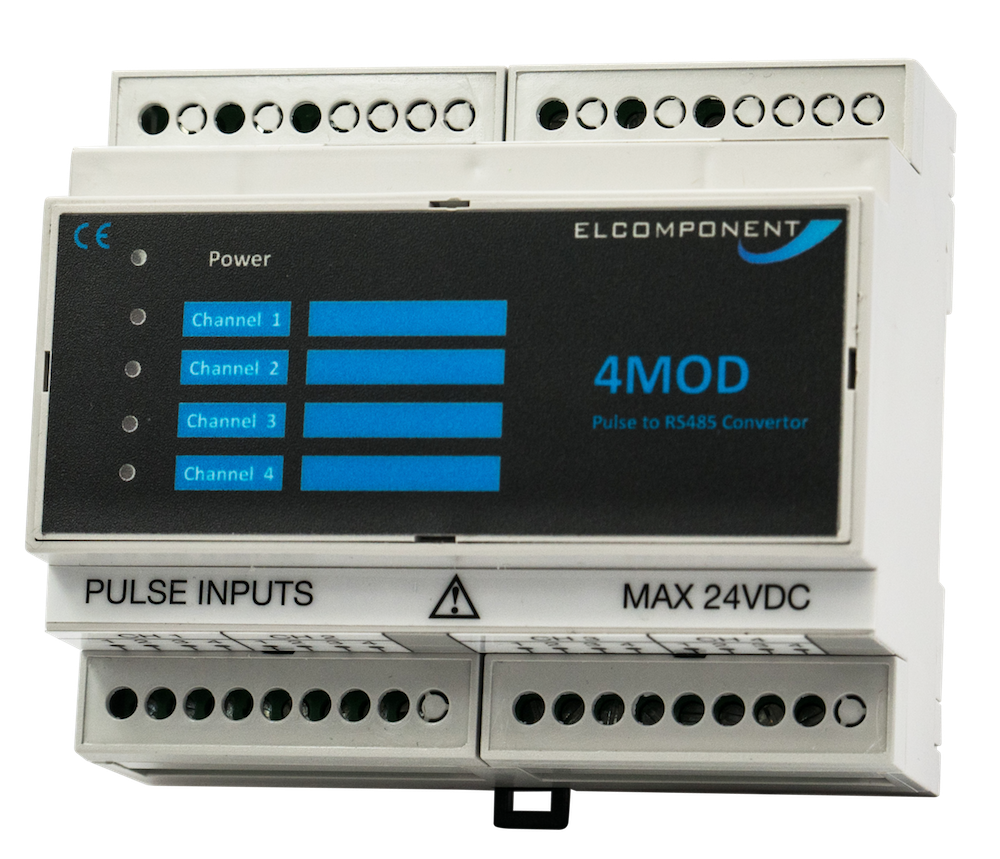

    4MOD Pulse to RS485 convertor
    • 4 channel pulse to RS485 Modbus
    • Resettable/Settable counters
    • Highly reliable pulse counting
    • Register memory
    Applications:
    • Pulse counting from gas and water meters
    • Pulse counting where register replication is needed
      4MODs Status to RS485
    • 4 status inputs to RS485 Modbus
    • Simple 1=ON, 0=OFF
    • Status memory (remembers last state)
    • Highly reliable
    Applications:
    • Status monitoring for process
    • Integrating Status in to aM&T systems

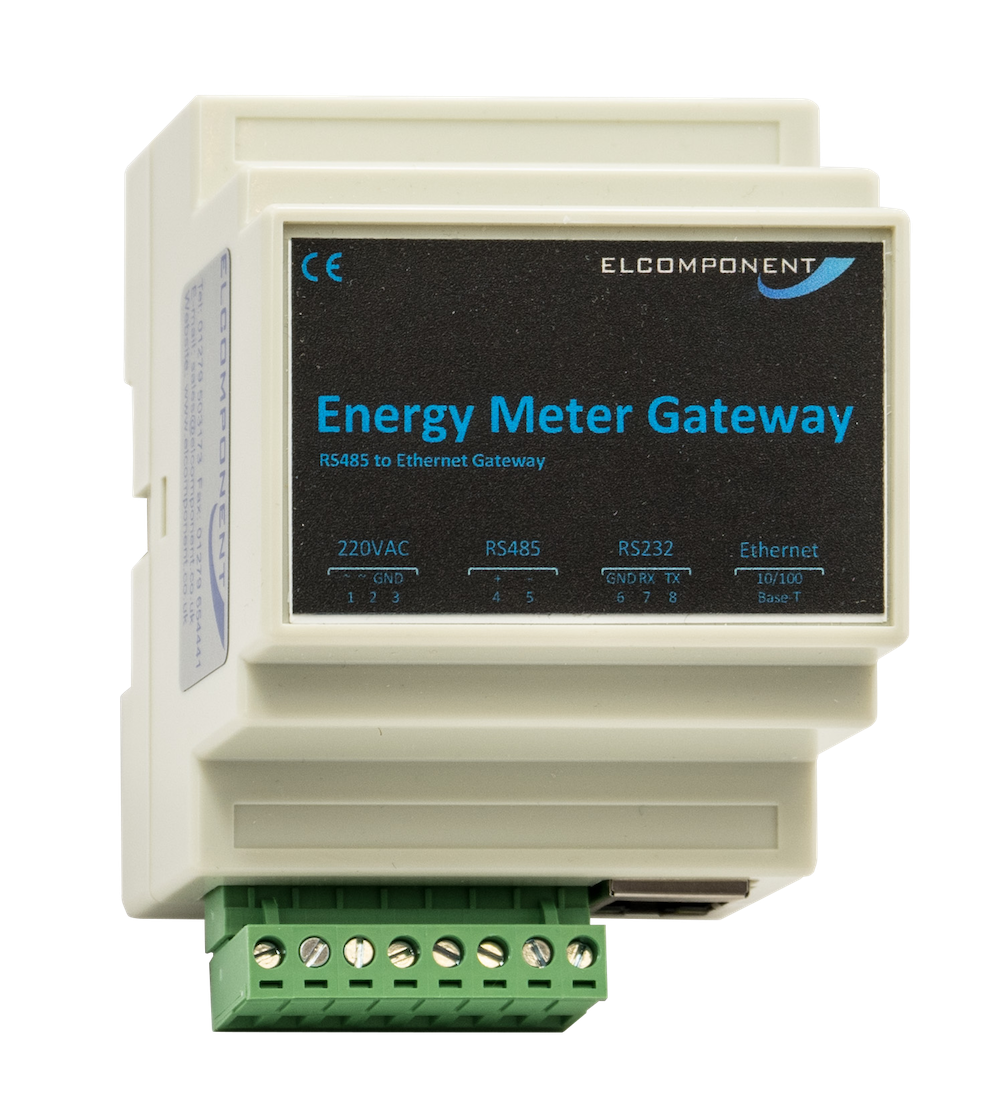

      Meter Gateway – Modbus to IP Network convertor
    • Converts meter Modbus to Modbus TCP
    • Highly reliable
    • Over 100 devices per convertor
    • Fixed IP
    Applications:
    • Creating meter networks via IP
    • Creating resilient meter networks

  • Air Quality Monitoring

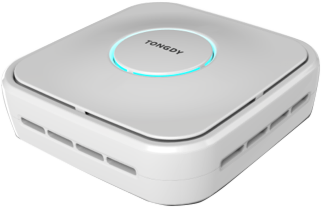

    MSD Multifunction office AQ sensor

    • RESET Approved
    • 5 / PM10 / CO2 / TVOC / Temp / Rh
    • 24Vdc / Modbus RTU
    • Configurable LED indication
    • Wall mounting

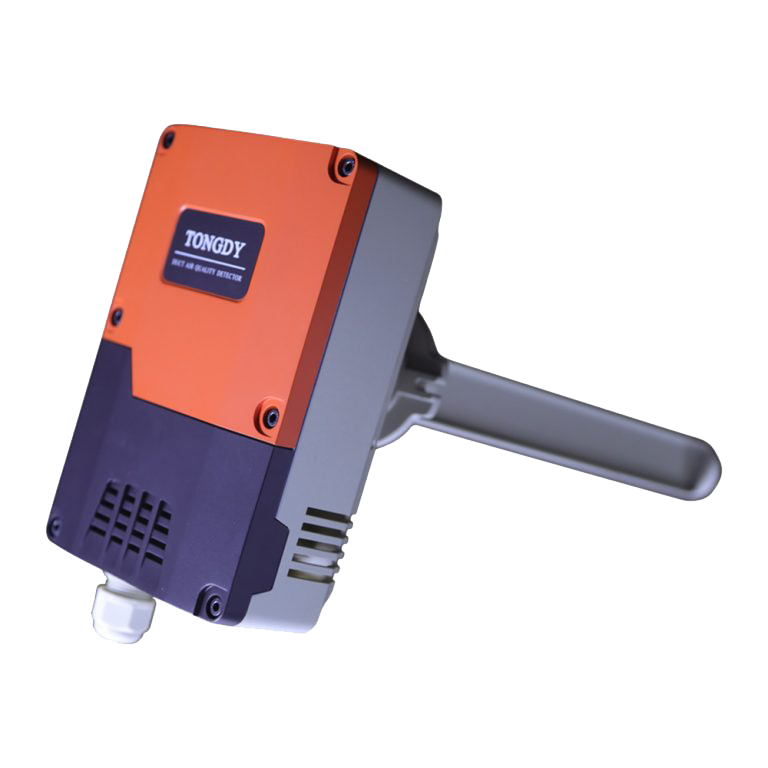

        PMD Multifunction Duct AQ sensor
    • RESET Approved
    • PM2.5 / PM10 / CO2 / TVOC / Temp / Rh
    • Ideal for RESET Core and Shell approval
    • 24Vdc / Modbus RTU
    • Duct mounting
      Data Loggers for AQ • SG-GSMi – up to 32 sensors, GSM, 90 days buffer • SG-MPC – up 64 sensors, LAN, multiple data dispatch options, integration with energy meters Elcomponent loggers can integrate to our own cloud platforms or 3rd party analytics solutions. SG-GSMi can be integrated via API

  • Metering – Electricity

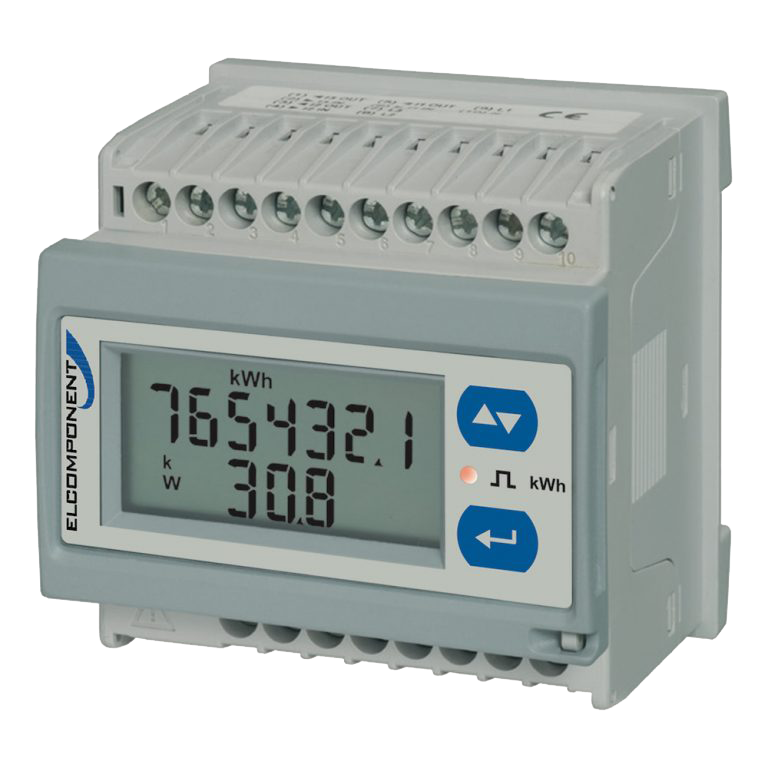

    AEM35 Three phase multi-function

    • DIN & Panel in one device
    • DIN Mounting 72w x 72h x 65d (4 DIN)
    • Panel Mounting 72w x 72h x 65d (96×96 adaptor)
    • Multi function display RS485 output
    • Current CT inputs .33V / 1A / 5A

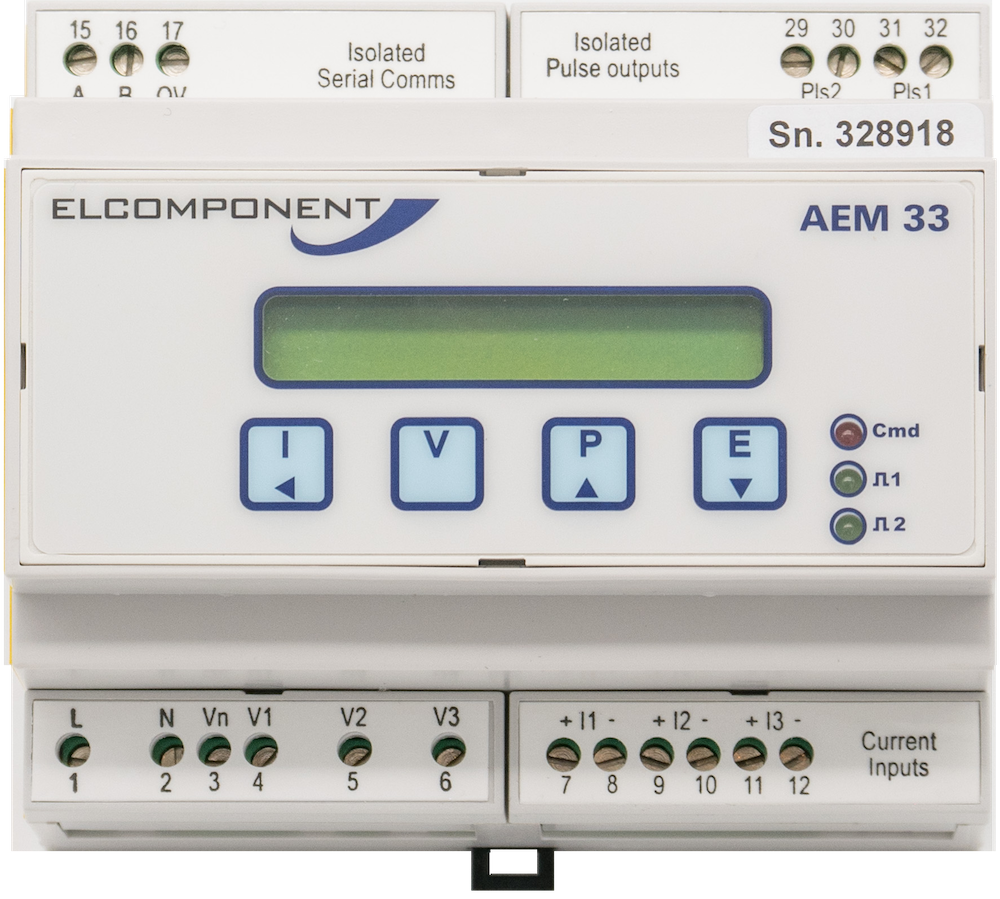

        AEM33 Three phase multi-function
    • DIN Mounting 106w x 90h x 58d (6 DIN)
    • Panel Mounting 96w x 96h x 90d
    • Multi function display / RS485 output
    • Current CT inputs .33V / 1A / 5A

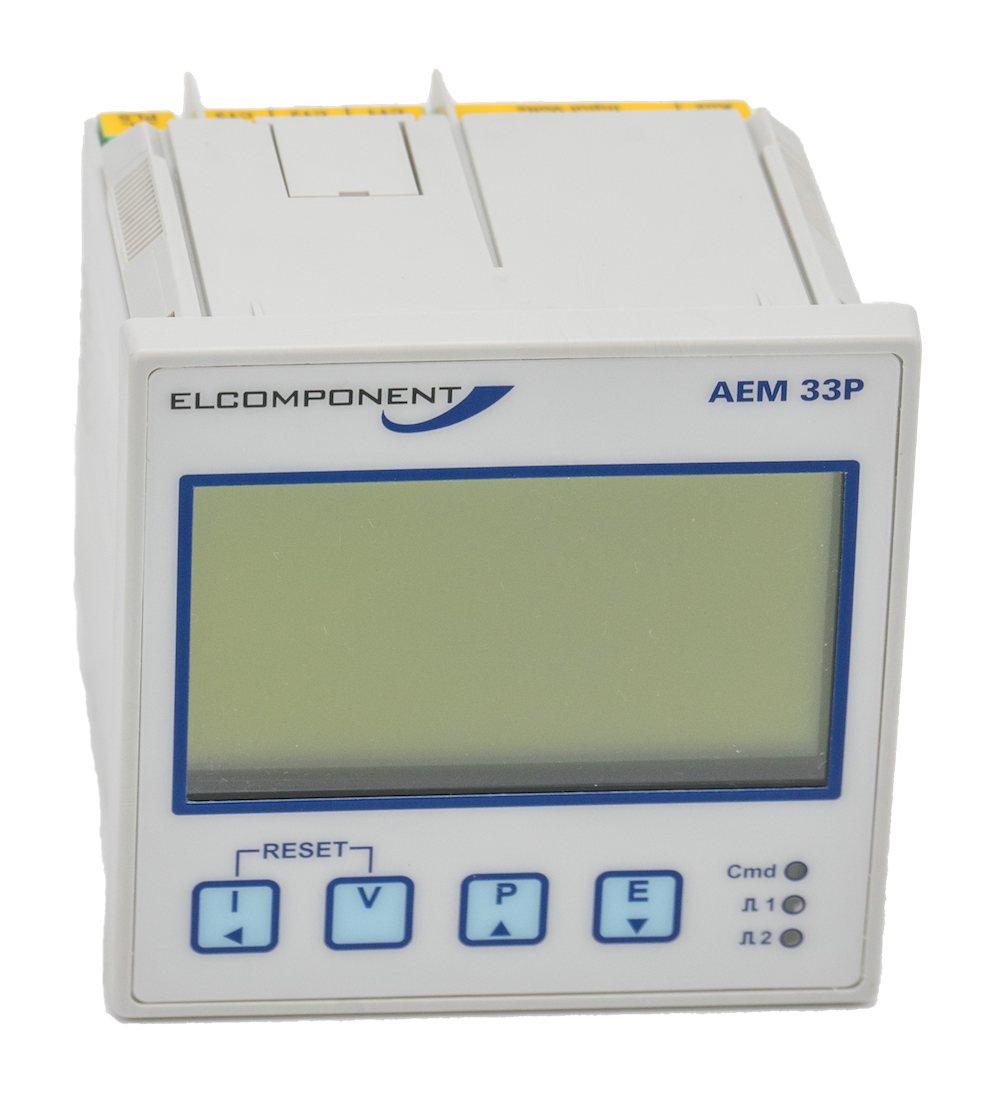

          AEM33P Three phase multi-function
    • DIN Mounting 106w x 90h x 58d (6 DIN)
    • Panel Mounting 96w x 96h x 90d
    • Multi function display / RS485 output
    • Current CT inputs .33V / 1A / 5A

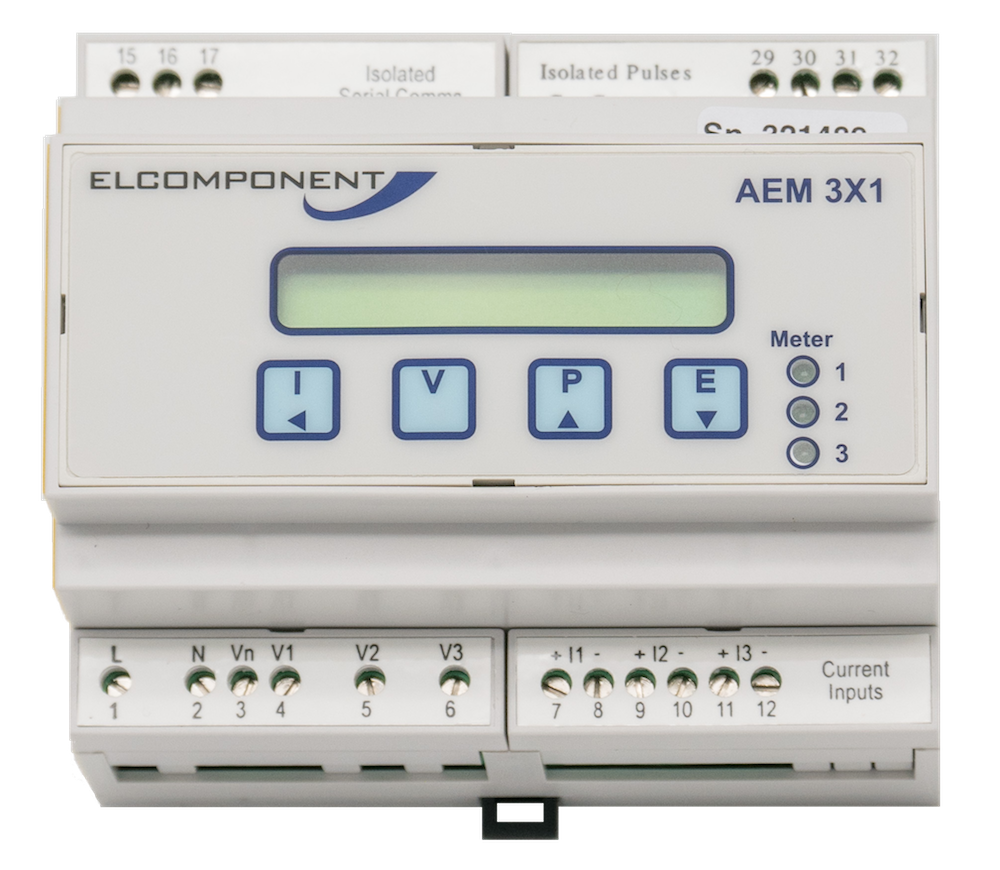

          AEM3x1 Three single phases in one meter
    • Three single phase meters in same device
    • RS485 output
    • DIN Mounting 106w x 90h x 58d (6 DIN)
    • Current inputs 0.33V / 5A
        Three phase MID approved CT meter
    • 5A CT input
    • Multi function display / RS485 output
    Three phase MID Direct Connect/ Whole Current Meter
    • 45A direct connection
    • 100A direct connection
    • Multi function display / RS485 output
    Single phase MID Direct Connect/ Whole Current Meter
    • 45A direct connection
    • 100A direct connection
    • Multi function display / RS485 output

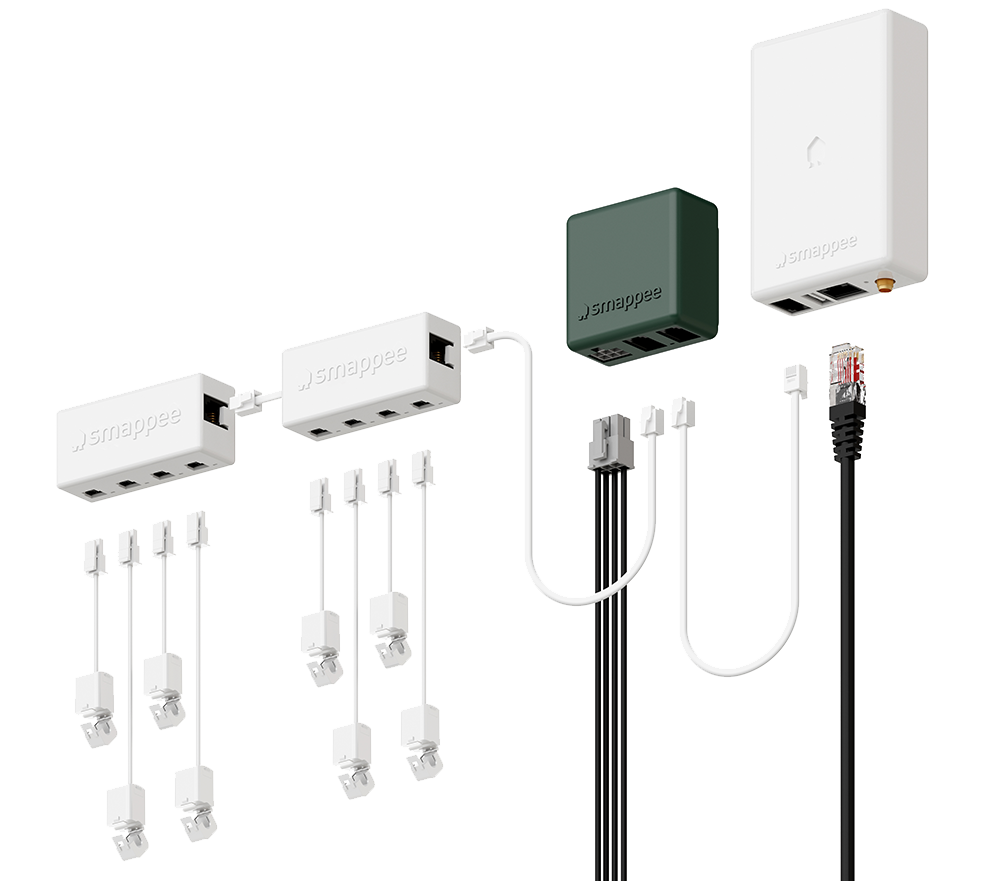

        Smappee IoT Metering for distribution boards and high-density metering
    • 28 single phase or 9 three phase supplies
    • 100m distance / Easy to install
    • WiFi / LAN / RS485
    • Web Dashboard and Mobile App
    Applications:
    • High density metering
    • Distribution board monitoring
    • Real time / APP based metering
    • Specialist monitoring and control

  • Metering Heat

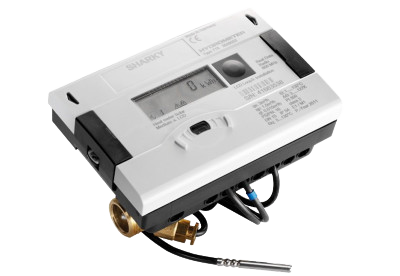

    775 Ultrasonic Compact Heat Meter

    • Approval with dynamic range up to 1:250 (qi:qp) MID in class 2 (depends on meter size), standard 1:100
    • Low power consumption lifetime (up to 16 years)
    • Modbus RS485, pulse outputs

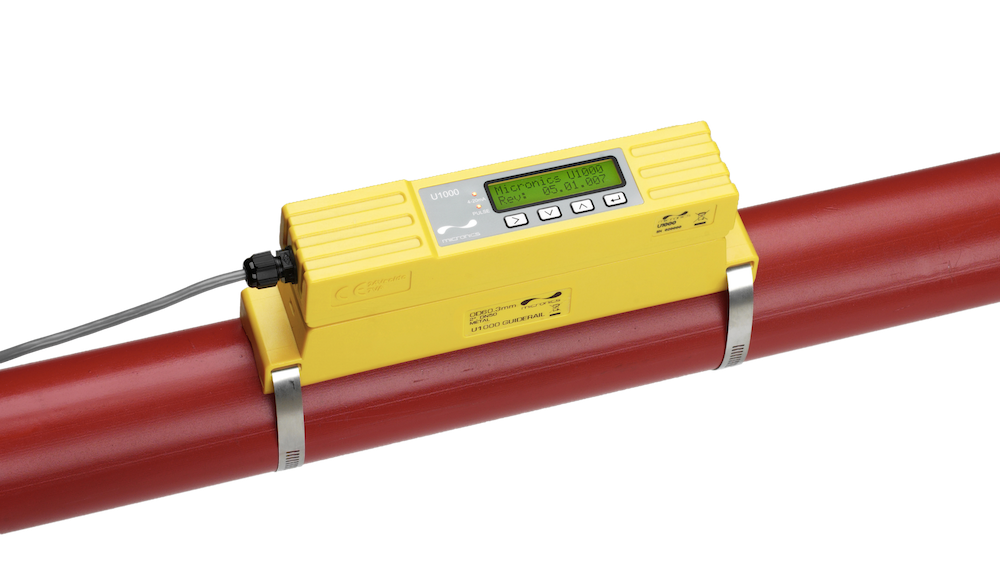

      Micronics U1000H Ultrasonic Heat Meter
    • Unobtrusive installation
    • Pulse output
    • Easy to install / no interruptions

  • Metering Water

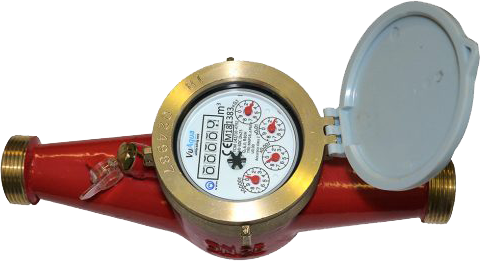

    Hot Water Meters (MID approved)

    • 15mm or 20mm Single-Jet Water Meter (Hot)
    • MID Approved R80 T90
    • Pulsed Outputs
    Other water meter types and sizes available   Cold Water Meters (MID & WRAS Approved)
    • 15mm or 20mm Single-Jet Water Meter (Cold)
    • MID Approved R80 T50 & WRAS approved
    • Pulsed Outputs
    Other water meter types and sizes available   MicronicsU1000W Ultrasonic Water Meter
    • Unobtrusive installation
    • Pulse output
    Easy to install / no interruptions

  • Metering Gas

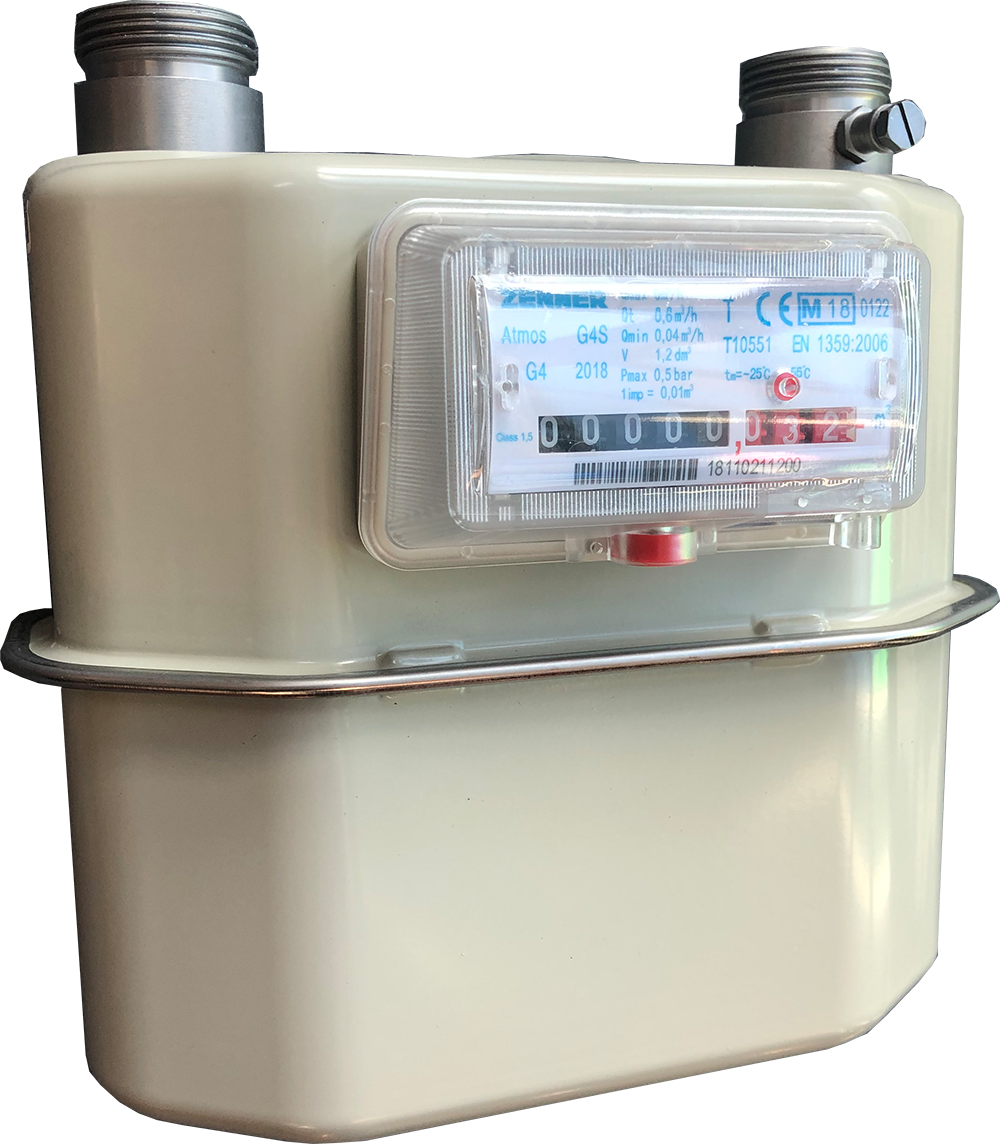

    Diaphragm Gas Meters MID approval and Fireproof Gas Meter rating up to 650 deg C according to EN1359. For Pulse Output option, This gas meters can be used for measurement of:

    • Natural gas
    • City gas
    • Propane-butane gas

  • Current Transformers

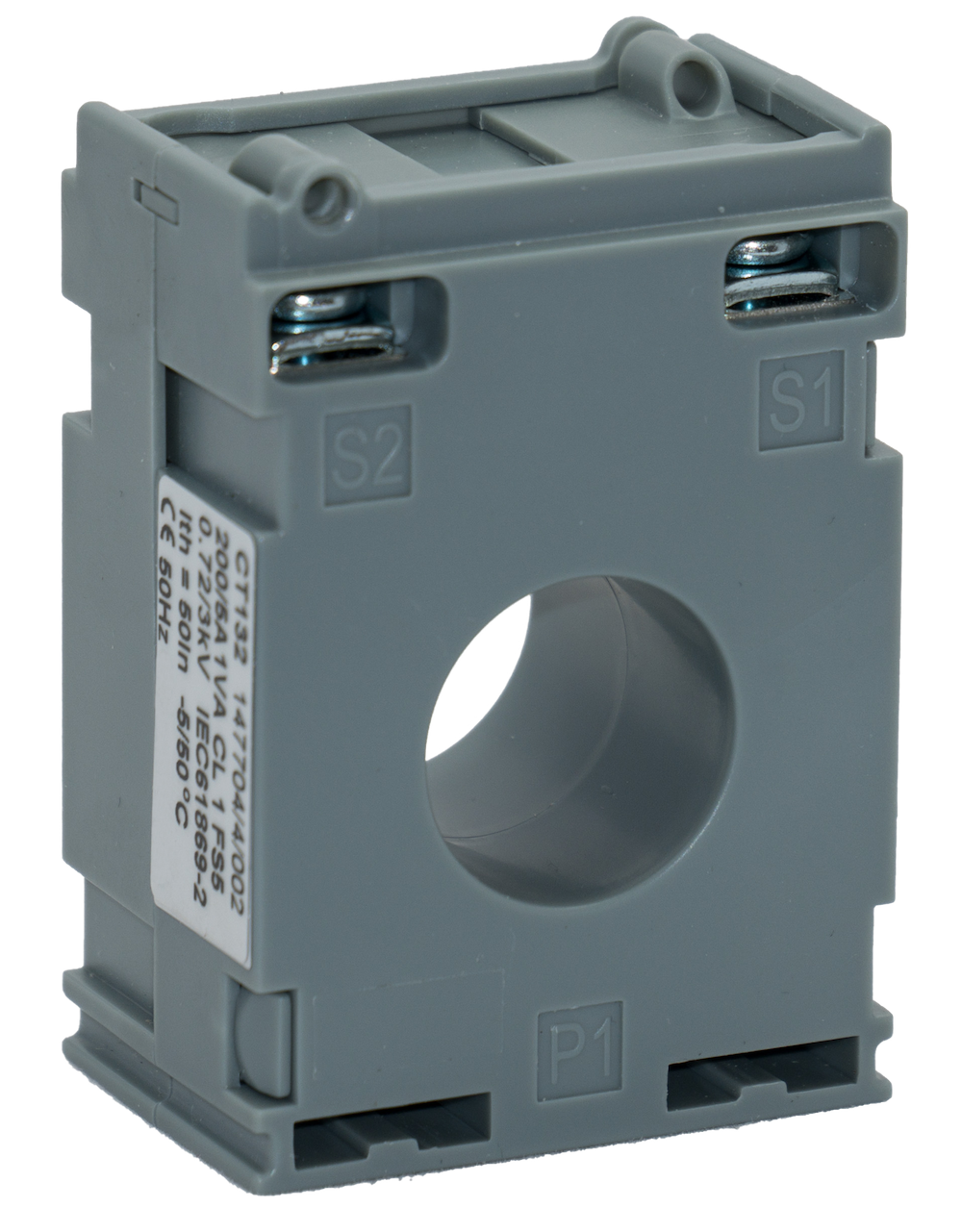

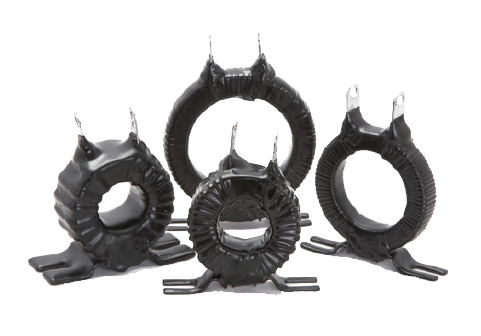

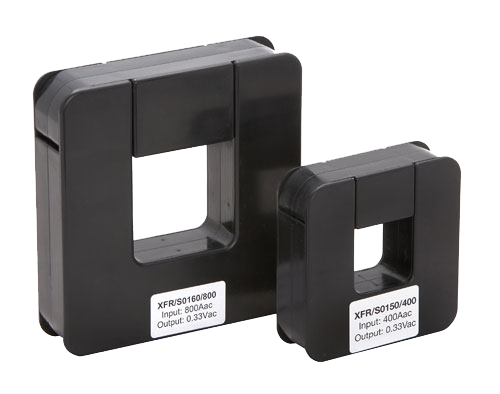

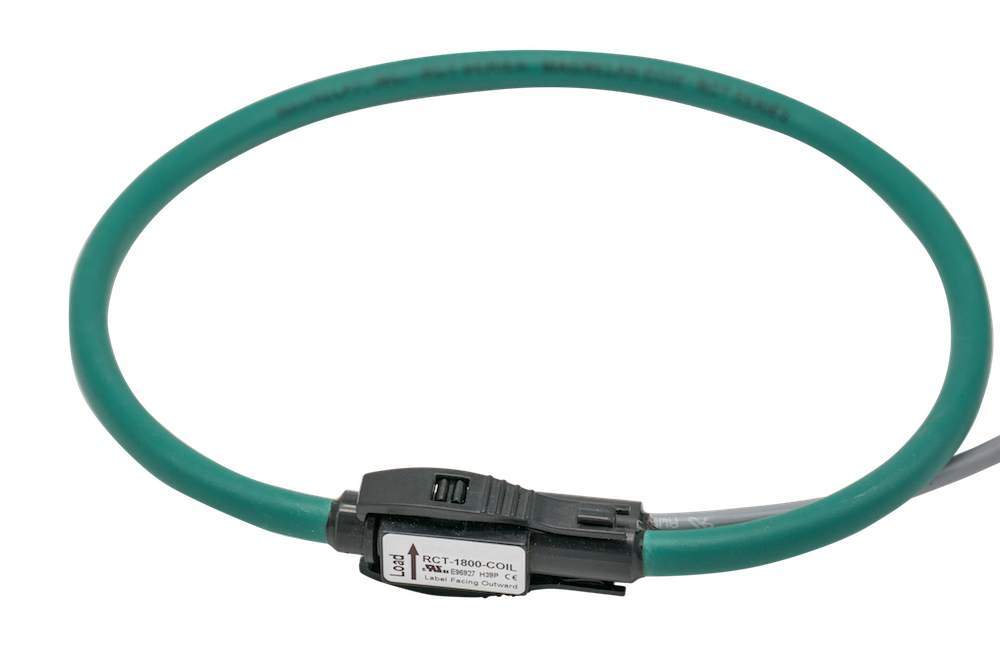

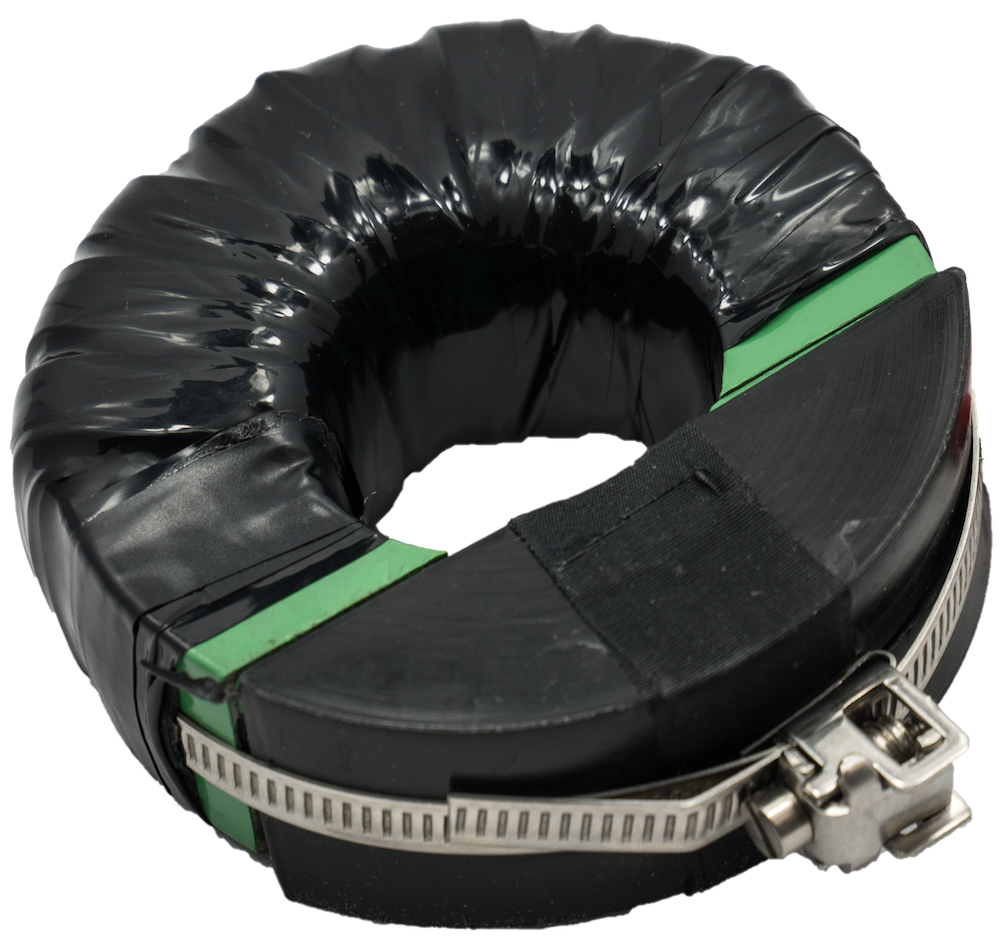

    Split Core (Clip) Split-Core transformer, with a unique clip-together feature. Supplied in a moulded case with 1 metre flying leads. Primary current ranges 100A to 800A     Split Core (Voltage output 0.33V) Ideal for general metering where small split core current transformers are required. Primary current ranges 100A to 800A       Ring Split Core Ideal for general metering when larger split core current transformers are required. Primary current ranges 800A to 1600A         Flex CT’s Flexible current sensors for 0.33V meters. Ideal for busbars, largesse cable, dual/triple cables. Primary current ranges 100A to 10,000A     Mini Moulded Ring CT A range of compact moulded case current transformers suitable for primary currents from 100A to 400A with built in sealable terminal covers       Standard Resin CT’s Lightweight high quality ring CTs with integral mounting feet. Resin coated CTs are the least bulky CTs and are recommended for applications where space is at a premium. Primary current ranges 100A to 2500A
