Our customers expect us to supply high quality, robust and reliable products. All of our products are tried and tested within our own monitoring solutions. This allows us to confidently be able to support our clients with product and application knowledge. Elcomponent - making sense of your energy.

Data Logger & Communications

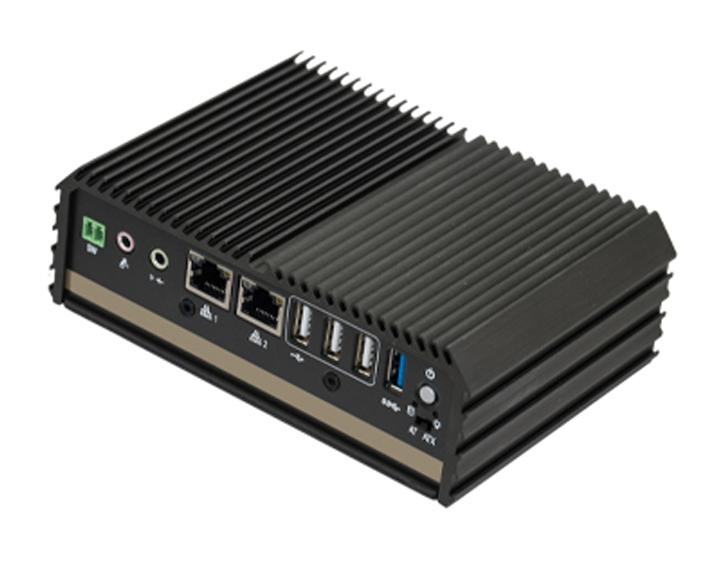

MPC – IoT Gateway

  • High performance metering gateway
  • Simultaneous data dispatch
  • FTP, SFTP, HTTP, HTTPS etc
  • Programmable Modbus mapping

Applications:

  • Multiprotocol meter logger
  • Simultaneous data feeds
  • Automated data quality
  • Network / device monitoring

SG-GSMi – Universal Modbus logger with GSM

  • Internal buffer 90 days
  • Built in GSM / simple configuration
  • Programmable Modbus mapping
  • Tiny footprint

Applications

  • Multiprotocol meter logger
  • Remote locations

SG-LANi - Universal Modbus logger

  • Built in IP / simple configuration
  • Programmable Modbus mapping
  • Modbus replication for BMS integration
  • Internal buffer 90 days

Applications

  • IP based meter logging
  • Data logging and BMS integration

SG-PL2-GSM

  • 2 Channel Pulse Logger
  • Battery powered
  • Built in GSM
  • Water proof IP65

Applications

  • Remote gas or water logging
  • Pulse logging in harsh environments

4MOD Pulse to RS485 convertor

  • 4 channel pulse to RS485 Modbus
  • Resettable/Settable counters
  • Highly reliable pulse counting
  • Register memory

Applications:

  • Pulse counting from gas and water meters
  • Pulse counting where register replication is needed



4MODs Status to RS485

  • 4 status inputs to RS485 Modbus
  • Simple 1=ON, 0=OFF
  • Status memory (remembers last state)
  • Highly reliable

Applications:

  • Status monitoring for process
  • Integrating Status in to aM&T systems



Meter Gateway – Modbus to IP Network convertor

  • Converts meter Modbus to Modbus TCP
  • Highly reliable
  • Over 100 devices per convertor
  • Fixed IP

Applications:

  • Creating meter networks via IP
  • Creating resilient meter networks

Air Quality Monitoring

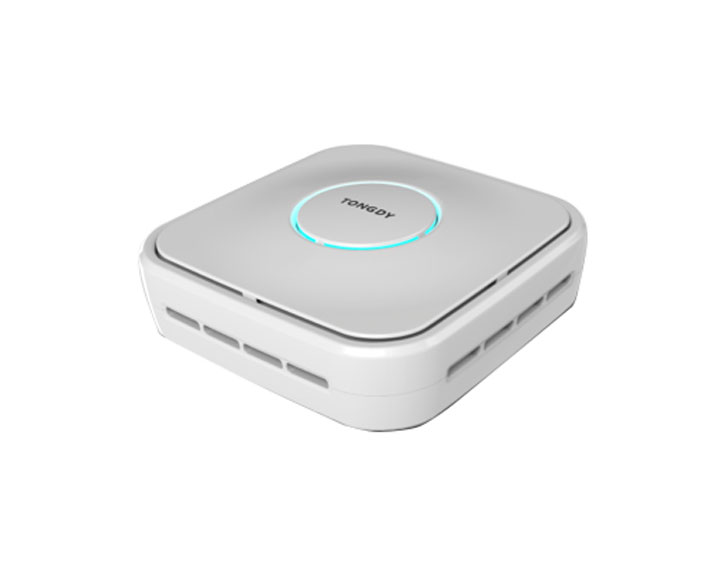

MSD Multifunction office AQ sensor

  • RESET Approved
  • 5 / PM10 / CO2 / TVOC / Temp / Rh
  • 24Vdc / Modbus RTU
  • Configurable LED indication
  • Wall mounting





PMD Multifunction Duct AQ sensor

  • RESET Approved
  • PM2.5 / PM10 / CO2 / TVOC / Temp / Rh
  • Ideal for RESET Core and Shell approval
  • 24Vdc / Modbus RTU
  • Duct mounting




Data Loggers for AQ

• SG-GSMi – up to 32 sensors, GSM, 90 days buffer
• SG-MPC – up 64 sensors, LAN, multiple data dispatch options, integration with energy meters

Elcomponent loggers can integrate to our own cloud platforms or 3rd party analytics solutions. SG-GSMi can be integrated via API

Metering - Electricity


AEM35 Three phase multi-function

  • DIN & Panel in one device
  • DIN Mounting 72w x 72h x 65d (4 DIN)
  • Panel Mounting 72w x 72h x 65d (96x96 adaptor)
  • Multi function display RS485 output
  • Current CT inputs .33V / 1A / 5A





AEM33 Three phase multi-function

  • DIN Mounting 106w x 90h x 58d (6 DIN)
  • Panel Mounting 96w x 96h x 90d
  • Multi function display / RS485 output
  • Current CT inputs .33V / 1A / 5A







AEM33P Three phase multi-function

  • DIN Mounting 106w x 90h x 58d (6 DIN)
  • Panel Mounting 96w x 96h x 90d
  • Multi function display / RS485 output
  • Current CT inputs .33V / 1A / 5A







AEM3x1 Three single phases in one meter

  • Three single phase meters in same device
  • RS485 output
  • DIN Mounting 106w x 90h x 58d (6 DIN)
  • Current inputs 0.33V / 5A





Three phase MID approved CT meter

  • 5A CT input
  • Multi function display / RS485 output


Three phase MID Direct Connect/ Whole Current Meter

  • 45A direct connection
  • 100A direct connection
  • Multi function display / RS485 output

Single phase MID Direct Connect/ Whole Current Meter

  • 45A direct connection
  • 100A direct connection
  • Multi function display / RS485 output





Smappee IoT Metering for distribution boards and high-density metering

  • 28 single phase or 9 three phase supplies
  • 100m distance / Easy to install
  • WiFi / LAN / RS485
  • Web Dashboard and Mobile App

Applications:

  • High density metering
  • Distribution board monitoring
  • Real time / APP based metering
  • Specialist monitoring and control

Metering Heat

775 Ultrasonic Compact Heat Meter

  • Approval with dynamic range up to 1:250 (qi:qp) MID in class 2 (depends on meter size), standard 1:100
  • Low power consumption lifetime (up to 16 years)
  • Modbus RS485, pulse outputs



Micronics U1000H Ultrasonic Heat Meter

  • Unobtrusive installation
  • Pulse output
  • Easy to install / no interruptions

Metering Water

Hot Water Meters (MID approved)

  • 15mm or 20mm Single-Jet Water Meter (Hot)
  • MID Approved R80 T90
  • Pulsed Outputs

Other water meter types and sizes available




Cold Water Meters (MID & WRAS Approved)

  • 15mm or 20mm Single-Jet Water Meter (Cold)
  • MID Approved R80 T50 & WRAS approved
  • Pulsed Outputs

Other water meter types and sizes available




MicronicsU1000W Ultrasonic Water Meter

  • Unobtrusive installation
  • Pulse output

Easy to install / no interruptions

Metering Gas

Diaphragm Gas Meters

MID approval and Fireproof Gas Meter rating up to 650 deg C according to EN1359. For Pulse Output option,

This gas meters can be used for measurement of:

  • Natural gas
  • City gas
  • Propane-butane gas

Current Transformers


Split Core (Clip)

Split-Core transformer, with a unique clip-together feature. Supplied in a moulded case with 1 metre flying leads. Primary current ranges 100A to 800A






Split Core (Voltage output 0.33V)

Ideal for general metering where small split core current transformers are required. Primary current ranges 100A to 800A







Ring Split Core

Ideal for general metering when larger split core current transformers are required. Primary current ranges 800A to 1600A









Flex CT’s

Flexible current sensors for 0.33V meters. Ideal for busbars, largesse cable, dual/triple cables. Primary current ranges 100A to 10,000A





Mini Moulded Ring CT

A range of compact moulded case current transformers suitable for primary currents from 100A to 400A with built in sealable terminal covers








Standard Resin CT’s

Lightweight high quality ring CTs with integral mounting feet. Resin coated CTs are the least bulky CTs and are recommended for applications where space is at a premium. Primary current ranges 100A to 2500A
