Smappee Industrial – Disruptive sub metering solution

Understanding how industrial processes consume energy can provide valuable insight for energy, maintenance and production managers.

Whether looking for direct energy saving opportunities or using energy consumption to track operating equipment, process failures, correct process operation more insights can be highly valuable.

Smappee allows industrial sites to monitor at a more granular level due to the low cost hardware and efficient installation procedure.

Elcomponent can provide more insight for less investment than ever before

Elcomponent has over 20 years’ experience installing metering systems. For the first time there is a solution that minimises metering technology, minimises installation costs and maximises the available data and value from sub metering.

  • Smappee reduces the cost of sub metering by 30-40%
  • Multi input kWh meter
  • 28 CT inputs
  • Single and three phase
  • Mobile App and Dashboard

Smart energy technology for commercial and industrial use

  • Smappee modular energy meter provides a cost effective solution for any metering situation.
  • Smappee allows sub metering of supplies previously considered too expensive.
  • Adaptable, easy to install and configure Smappee is ideal as a standalone system or part of a larger energy management solution.

Low-cost, quick installation

Thanks to its quick and easy installation and low maintenance costs, Smappee Infinity’s total cost of ownership compares favourably with other competing solutions.

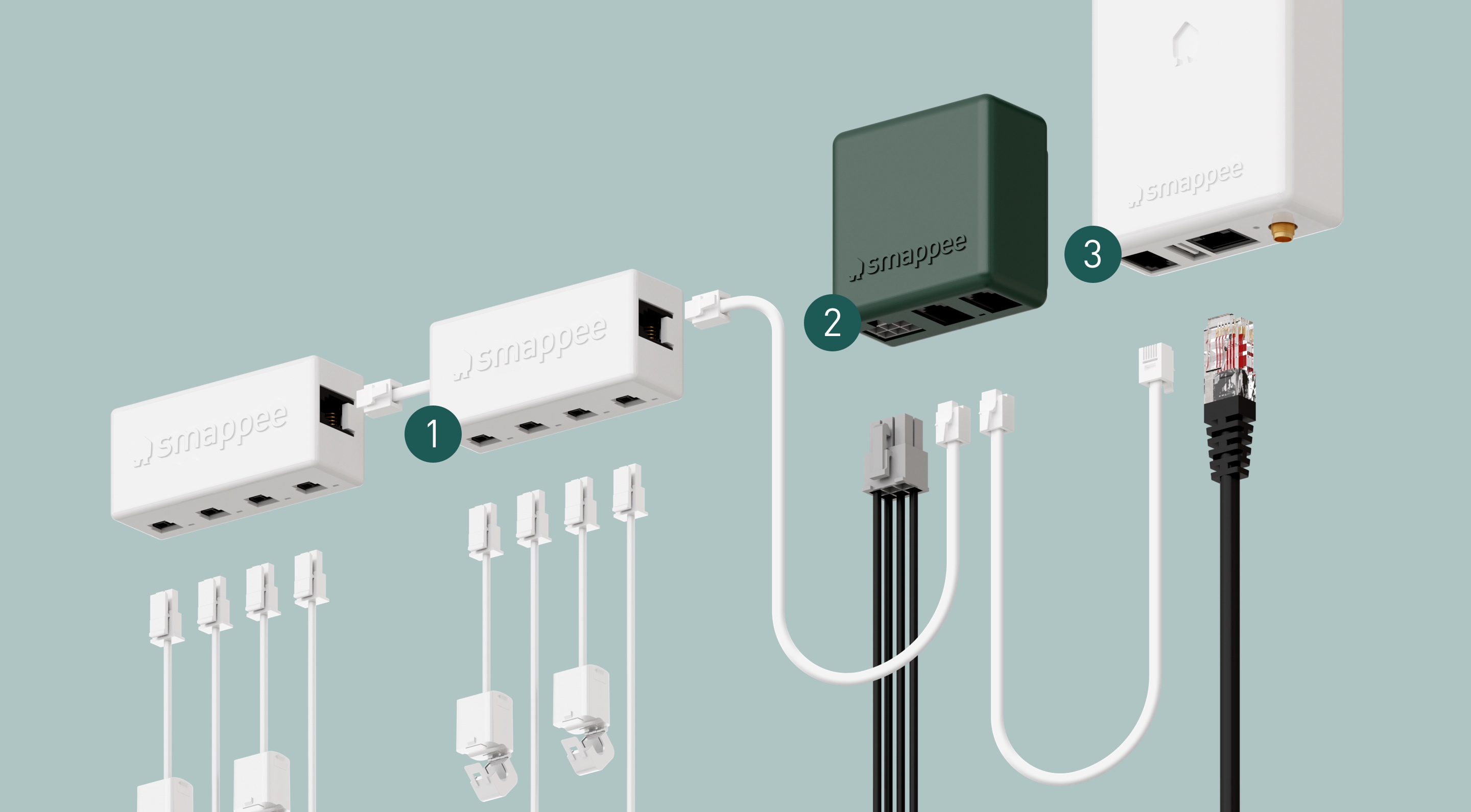

1 CT Hub

The CT Hub is the main component of the monitoring system. You can connect up to 4 CTs or Rogowski coils to the CT Hub to measure different currents, ranging from 50 A to 1,000 A. Daisy chain up to 7 CT Hubs to measure different installations, up to a distance of 100 meters (109 yards).

2 Power Box

The Power Box is the heart of the monitoring system as it provides power to all components. It measures the line voltage of the different connected phases and transfers the data via the Smappee Bus. Power Box is compatible for direct communications to Elcomponent data collection systems.

3 Genius Gateway

The Genius is the gateway between the monitoring system and the Smappee Cloud, ensuring secure data storage from different components. It also interacts with third party components, Smappee Gas & Water and Smappee Switch. The gateway can also provide control and additional communications options for special projects.

Dashboard

This comprehensive web based tool can be used for graphic and numerical analysis, to track data on a periodic basis (regular intervals: 5-minute, hourly, daily, monthly and yearly). Add the ‘Cards’ to visualize the data for each site according to your preference, easily compare results and export the required data as a .csv file, using the download button.

Mobile App

Our user-friendly app is available for iOS and Android. It visualizes real-time energy data and graphs with historical overviews by day, week, month and year. Monitors can be added and configured via the App.

Compatible with metering systems

Smappee is compatible with Elcomponent metering systems meaning your customer can combine technologies without changes to data collection or software. Smappee allows customers to meter deeper than ever before.

Our expert installation team can deploy Smappee for SME sites where previously this was cost prohibitive, and Smappee allows larger sites to meter at much more granular level than ever before  at a significantly lower cost.
